Quick Details

  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: aluminum composite panel
  • Usage: Outdoor
  • Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof
  • Surface Treatment: Brushed, Foil Decoration, Mirror, PE Coated, PVDF Coated
  • aluminium composite panel: acp sheet

Packaging & Delivery

Packaging Details Standard export package for aluminium composite panels / acp sheet
Delivery Time 20 Days

PE/PVDF Aluminum composite panel (ACP)



Introduction:



Aluminium Composite Panel (ACP)/Sandwich Panel is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of anti-toxic polyethylene material in the middle. Also, both of skin surfaces need to be coil-coated with special paint material like PVDF or PE resin under a specific temperature condition.

Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality aluminum composite panels. Our aluminum composite panels passed GB/T1778-1999 ,SGS tests and gained CE certificate. Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.



Specification:



Panel Thickness(mm)
2mm-8mm
Aluminium Skin Thickness(mm)
0.04mm-0.5mm
Width(mm)
until to 2000mm
Length(mm)
until to 10000mm

Feature :



-Light weight, high strength, extreme rigidity, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-acid-resistance, alkali-resistance, good weatherproofing and non-resonance
-various uniform colors ,can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance, simply cleaning



  Applications:

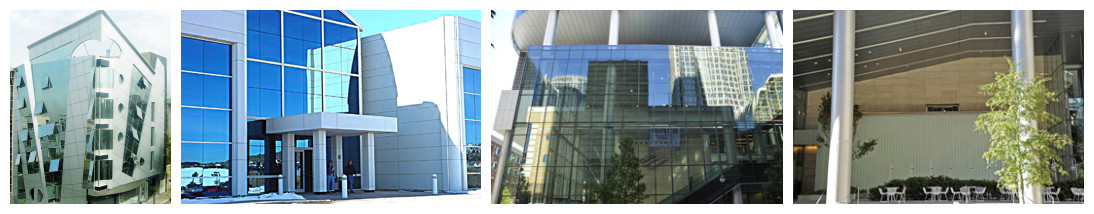

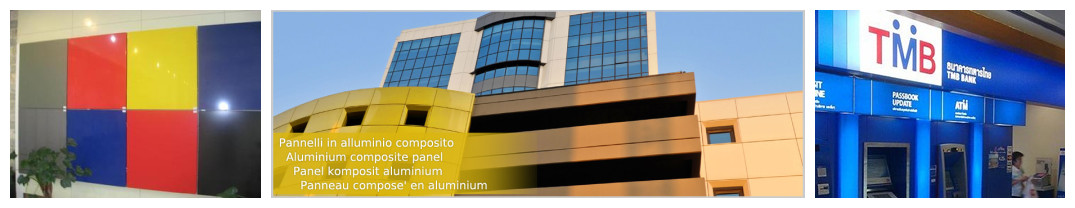

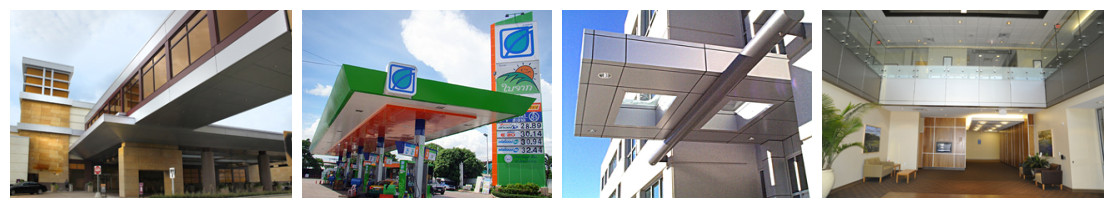

1. Constructional exterior curtain walls;
2.Decorative renovation for storey-added old buildings;
3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4.Advertisement board, display platforms and signboards;

 5. Wallboard and ceilings for tunnels;

 6. Raw materials in industrial purpose;

 7. Materials used for vehicle and boat.



Package:



Plastic protection film, full container, loading directly bulk cargo with pallets.





Colors:

Standard  RAL (Glossy,Flash) Colors:

Golden Mirror,Silver Mirror, Golden Brushed Silver Brushed Colors:

Wooden , Marble, Granite  Colors:

.

.

  Properties :

 .

Paint Thickness(micron)
≥ 25um
Pencil Hardness
2H
Toughness Of Coating
2T
Temperature Resistance
-500C+900C
Impact Strength(kg/cm2)
50
Boiling Water Resistance
boiling for 2 hours,No change
Acid Resistance
Immerse surface in 2% HC1 for 24hours,No change
Alkali Resistance
Immerse surface in 2% NAOH for 24hours,No change
Oil Resistance
Immerse surface in 20# engine oil for 24hours,No change
Solvent Resistance
Cleaned 100 times with Dimethylbenzene,No change
Cleaning Resistance
>1000 times no change
Thermal Expansion
2.4mm/m @1000C Temp difference
Peel Strength
Average 131N.mm/mm
Bending Strength
>100MPA
Bending Elastic Modules
>2.0*104MPA
Heat Distortion Temperature
>950C

.

.
